Overview

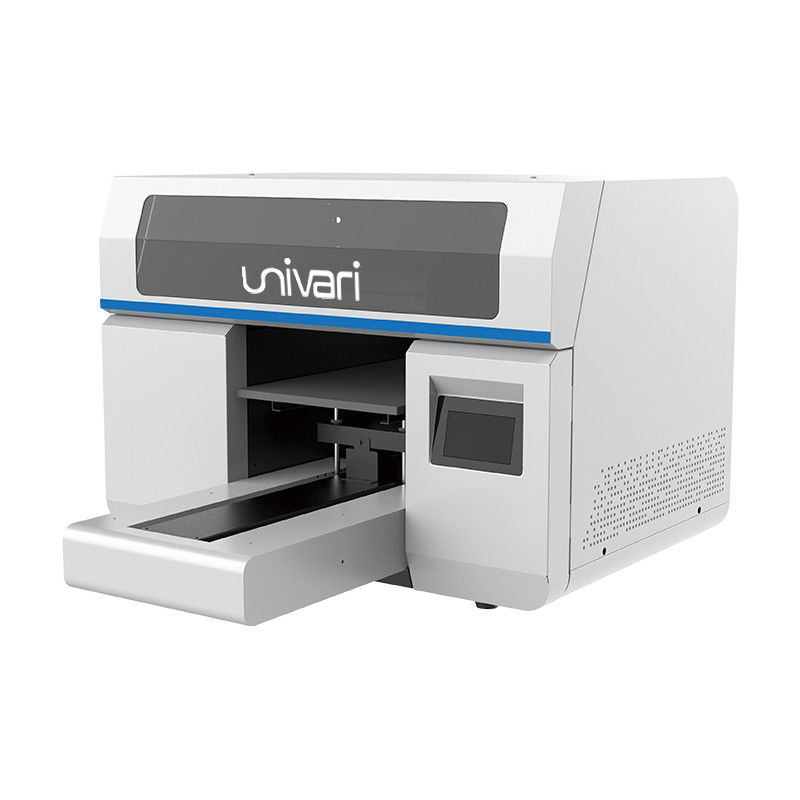

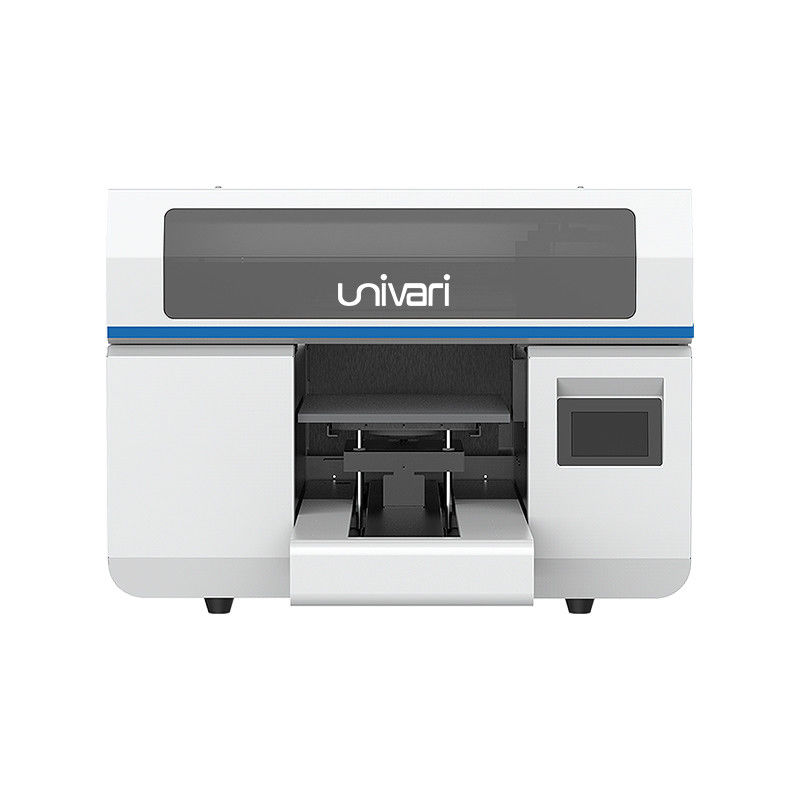

A3 UV Inkjet Printer Mobile Covers Printing Machine With U1 HD Printhead
More Compact , More Professional , More Efficient

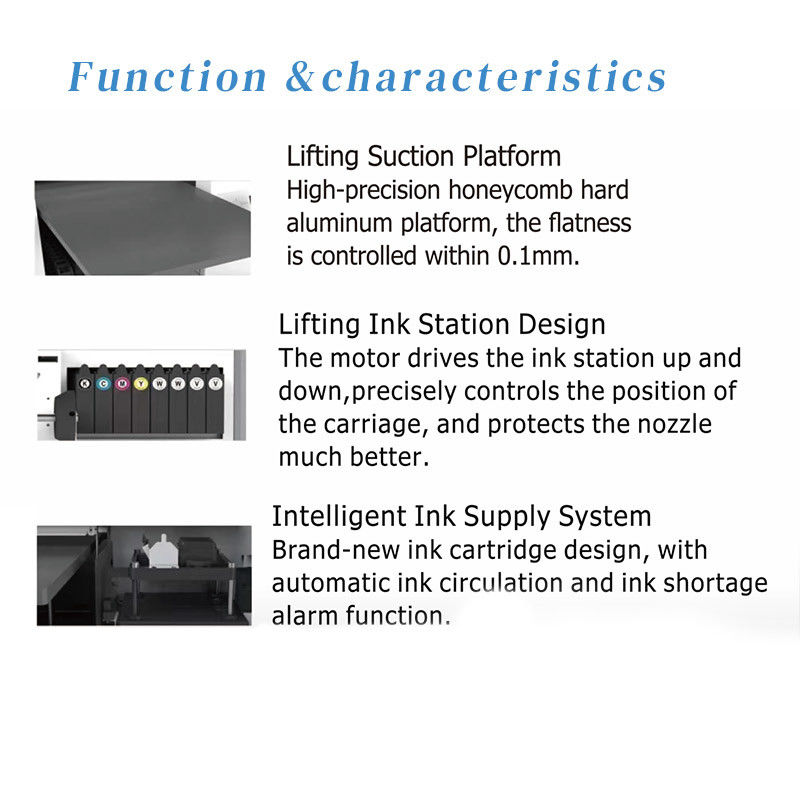

Function & Characteristics

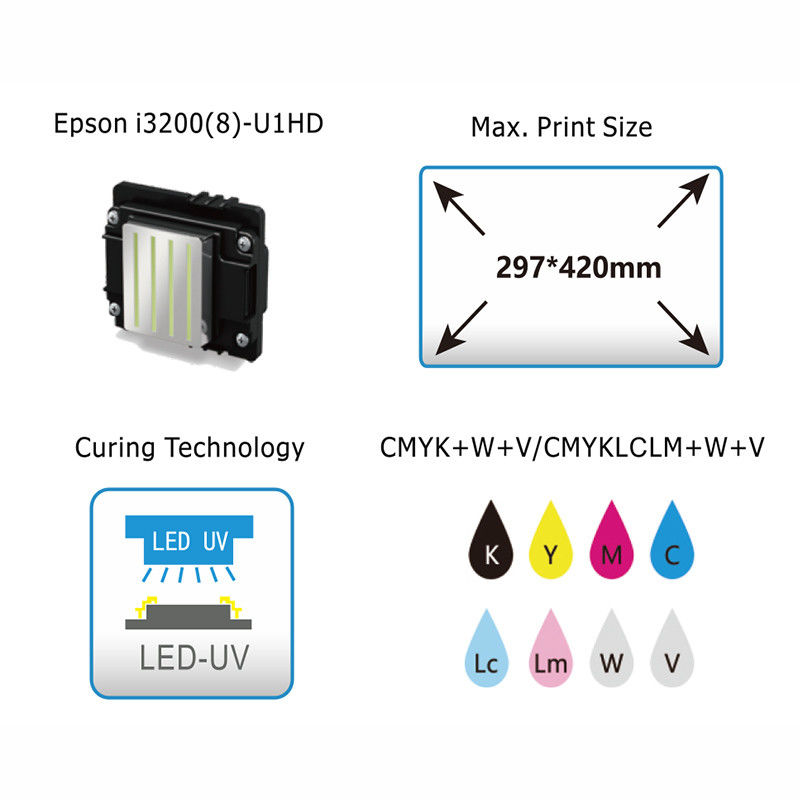

1. EPSON i3200(8)-U1HD Printhead
High-resolution, photo-quality output
2. Lifting Suction Platform
High-precision honey comb hard aluminum platform, the flatness is controlled within 0.1mm.
3. Lifting Ink Station Design
The motor drives the ink station up and down, precisely controls the position of the carriage, and protects the nozzle much better.
4. Intelligent Ink Supply System
Brand-new ink cartridge design, with automatic ink circulation and ink shortage alarm function.
Technical Parameters
|
Model |
UNI-A3 |
|
|
Printhead and Quantity |
1pc EPSON I3200-U1 HD |
|
|
Printing Speed |
0.28㎡/h-3㎡/h |
|
|
Max.Print Size |
297*420mm |
|
|
Ink Types |
UV Ink |
|
|
Color Option |
CMYK+W W+V V |
|
|
Rip Software |
RIIN or FLEXI SAI PhotoPRINT |
|
|
Media Type |
Acrylic, Aluminum Board, Ceramic Tile, Glass, Wood Board, Leather, etc. |
|
|
Media Size |
Flatbed: 420mm*300mm*100mm(L*W*H) |
|
|
Power |
220V 50HZ/60HZ/500W |
|
|
Dimension |
Printer Size: 1100*920*620mm(L*W*H) |
|
|
Weight |
Net Weight: 80kg |
|
High Quality Printing
1. Easy To Print Spot Color, Make the Image Rich Sense of Hierarchy
Spot color refers to when printing instead of printing C,M,Y, K together, the color is printed specifcally with a "specifc ink" (white ink). After the printing of the image has an excellent sense of hierarchy, perfect restore the picture of the sense of reality.
2. Synchronous Output of CMYK+W+CMYK+V
Through its precise control system and perfect mechanical precision, the equipment makes the varnish present a shocking visual effect that achieves a 3D effect on printing. Not only the price low, the process is simple, and also it can be polished on a full image or partially print.
3. Variable Ink Drop
The ink droplets are divided into 3 different sizes and can be clearly printed 2PT different Font sizes print, which can achieve high-quality fonts that reduce graininess printed. Achieve photo-level printing quality.
4. Embossed Printing Effect
The embossed printing scheme, copy the master's handwriting, with strong embossed printing mode does not miss a trace of brush lines, making your pictures look more delicate and realistic.
