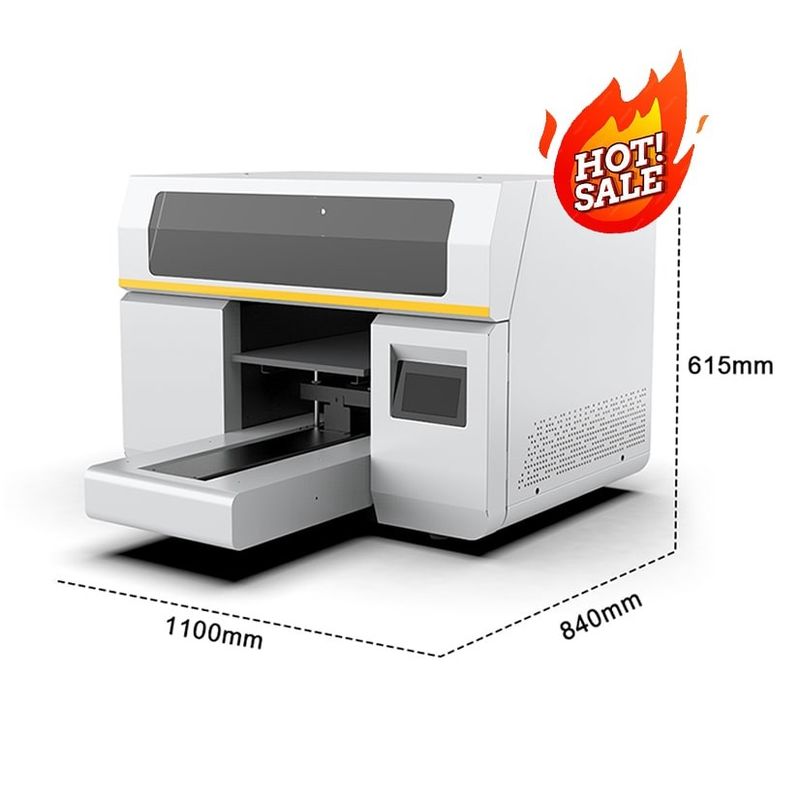

This compact desktop UV inkjet printer has a multitude of features and printing options tailored to meeting a variety of needs. Not only is it capable of printing flat sheets, rolls, and cylinders, it is outfitted with the Epson I3200 (8)-U1HD nozzle. With 3200 nozzles divided into 8 columns, and 8 ink columns, it can support up to 8 color printing.
Right now, this machine is equipped with a 6 color (K/C/M/Y + W + V) printing solution with a printing resolution of up to 1200 dpi and supporting up to a 4 level grayscale printing.
More Compact, More Professional, More Efficient
High-resolution, photo-quality output
High-precision honeycomb hard aluminum platform, the flatness is controlled within 0.1mm.
The motor drives the ink station up and down, precisely controls the position of the carriage, and protects the nozzle much better.
Brand-new ink cartridge design, with automatic ink circulation and ink shortage alarm function.

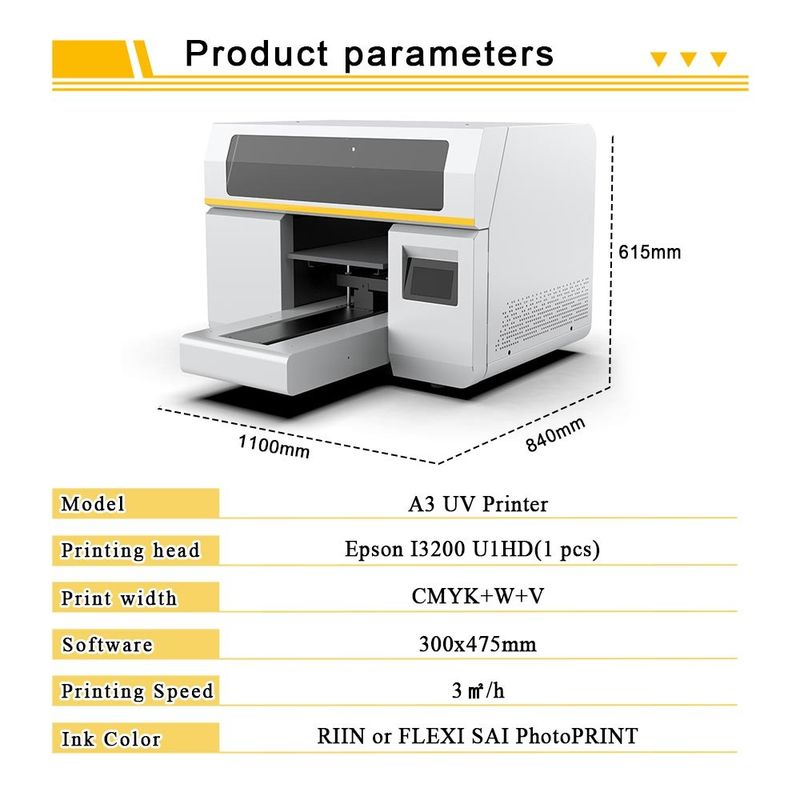

| Item | Model |
|---|---|
| A3 UV Printer | |
| Printhead |
Epson i3200(8)-U1HD Grey Scale Micro Piezo Printhead
|
| Printhead Quantity | 1 |
| Print Size |
Flatbed:420mm*297mm(L*W) RTR:150mm*290mm(Diameter*W) Cylinder:30-90mm*230mm(Diameter*W) |
| Print Thickness | 1cm-9cm |
| Ink Type | Environment-friendly UV Curing Ink |
| Ink Colors | Standard: CMYKW Varnish, Optional: Y MCK Lc Lm+W |
| Printing Accuracy | 1200dpi |
| Rip Software | JSW, PP/PF, Etc |
| Power/Power Rating | 220V50HZ/60HZ/500W |
| Print File Format | TIFF JPEG, PDF EPS, PNG, AI, BMP, etc. |
| Platform Size | 300x475mm |
| Media Type | Acrylic, Aluminum Board, Ceramic Tile, Glass, Wood Board, Leather, Etc. |
| Weight | 80kg/150kg |
Advertising and publicity: UV printers can be used to produce indoor and outdoor billboards, banners, posters, exhibition boards and other promotional materials. It can print on different types of materials, such as plastic, wood, metal, glass, ceramics, etc., giving the advertisement better durability and visual effects.
We provide technical support to ensure that your UV Hybrid Printer is working correctly and that you are getting the best possible results. Our team of professionals can provide troubleshooting advice and help you find solutions to any issues you may be having.
We offer a range of services for the UV Hybrid Printer, including maintenance, repairs, and upgrades. Our experienced technicians can provide expert advice and make sure that your printing needs are met with the highest quality of service.
The UV Hybrid Printer is designed to be user- friendly and is packaged securely for shipping. The printer will be carefully inspected and packaged before being shipped to the customer.
Each UV Hybrid Printer is packaged in a box that has been designed to protect the printer against any potential damage during shipping. The box also includes foam inserts to protect the printer from shock and vibration.
In addition, the box contains a user manual and other accessories that may be necessary for the operation of the printer.
The UV Hybrid Printer is shipped with a reliable courier company. The printer will be tracked and monitored during the shipping process to ensure that it arrives safely and on time.
The customer will receive an email notification when the printer has been shipped, and will also be able to track the progress of the shipment.
