Place of Origin:
Zhengzhou,China
Brand Name:
VISUAL-TEX
Product Introduction:

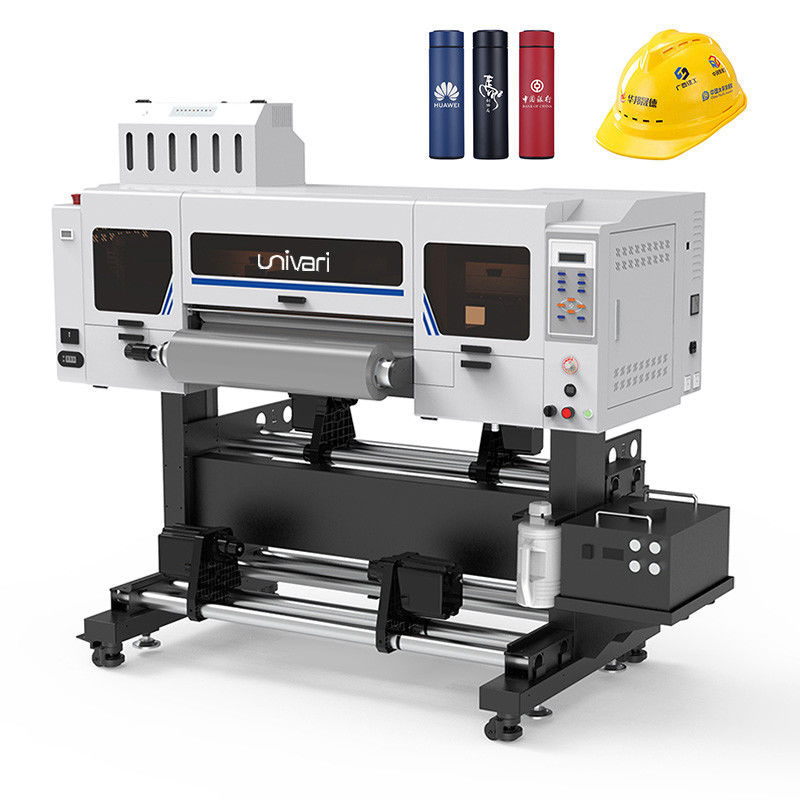

The Fully Automayic 7 Colors 60cm Printing Label Sticker Machine UV DTF Printer
Applications:
Technical Parameters:
| Model | UNI-603 | |
| Printer Width | 60cm | |
| Printhead Type | Epson I3200-U1 | |
| Printhead | Printhead Cleaning: Independent Wiper Printhead Quantity: 3 |
|
| Printing Speed | 4PASS: Draft Mode 10.5㎡/h Fine Mode 8㎡/h 6PASS: Draft Mode 8.5㎡/h Fine Mode 6m/h |
|
| Printing Width | 24 inch | |
| Ink Types | UV Ink | |
| Color Option | V+CMYK+W | |
| Rip Software | RIIN, FLEXI SAI PhotoPRINT, Maintop | |
| Media Type | AB Film | |
| Media Transmit | Automatic Roll Rewinding and Unwinding | |
| Power | 110V/220V 50-60HZ | |
| Dimension | Printer Size: 1720*800*1450mm(L*W*H) Package Size: 2110*1160*940mm(L*W*H) |
|
| Weight | Net Weight: 240kg Gross Weight: 316kg |
|
Working Process:
①design and typeset
② Print
③Tectorial membrane
④Finished
